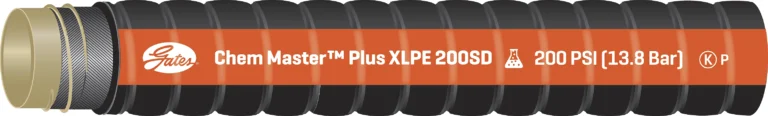

Chem Master™ Plus XLPE

ÖNERİLEN ALANLAR: Çeşitli kimyasal ürünlerin tanker, mavna, gemi veya depolama tankı transferi. Chem Master™ Plus XLPE, tam emme kapasitesinin yanı sıra hortumları dar kıvrımlardan yönlendirmek için bir tel sarmal içerir. Modifiye Çapraz Bağlı Polietilen boru stoğu, paslanmaz çelik bağlantı parçalarıyla sıkı bir sızdırmazlık sağlamak için ‘sınıfının en iyisi’ olup ‘açık uçlu’ 50 PSI buharla veya %10 (NaOH) @ + içeren bir banyoda temizlik için tasarlanmıştır. 212°F (+100°C). Yerinde temizleme (CIP) yöntemleri kullanılabilir. Uygulamalar, çeşitli endüstrilerde kullanılan çok sayıda kimyasalın yapı taşları olan 950’den fazla temel kimyasalı içerir.

DİKKAT: %90’dan fazla sülfürik asit gerektiren uygulamalar için Denver Ürün Başvurusu (303) 744–5070 ile iletişime geçin. Chem Master™ Plus XLPE, +250°F’ye (+121°C) kadar sıvı sıcaklıklarına dayanacak şekilde tasarlanmıştır; ancak derecelendirme taşınan spesifik kimyasala bağlıdır. +125°F (+52°C) üzerindeki kimyasallar için Denver Ürün Başvurusu (303) 744–5070 ile iletişime geçin. ‘Kapalı buhar’ temizliği için önerilmez.
%90’dan fazla sülfürik asit gerektiren uygulamalar için Denver Ürün Başvurusu (303) 744–5070 ile iletişime geçin.
Özel sipariş üzerine ilave renkli kapaklar mevcuttur.
Doğru hortum seçimi için Gates Kimyasal Direnç Tablosuna bakın.
Chem Master™ Plus XLPE CR, emme ve ezilme direncinin yanı sıra hortumları dar kıvrımlardan yönlendirmek için bir monofilament helezon içerir.

Detaylı İncele

Part #	Product #	Description	Maximum Working Pressure (psi)	Maximum Working Pressure (bar)	Inside Diameter (in)	Inside Diameter (mm)	Outside Diameter (in)	Outside Diameter (mm)
1-1/2X100 CHEM MASTER EPDM 150SD/46960004	46960004	1-1/2X100 CHEM MASTER EPDM 150SD	150	10.3	1.50	38.1	2.04	51.8
1-1/2X100 CHEM+ XLPE 200SD BLU	46950723	1-1/2X100 CHEM MASTER PLUS XLPE 200SD CR BLUE			1.50	38.1	2.13	38.1
1-1/2X100 CHEM+UHMWPE200SD BLK	46970003	1-1/2X100 CHEM MASTER PLUS UHMWPE BLACK 200SD			1.50	38.1	2.00	38.1
1-1/2X100 CHEM+XLP200SD CR GRN	46950711	1-1/2X100 CHEM MASTER PLUS XLPE 200SD CR GREEN			1.50	38.1	2.13	38.1
1-1/2X150 CHEM XT FEP200SD BLK	46980086	1-1/2X150 CHEM MASTER XTREME FEP 200SD CR			1.50	38.1	2.08	38.1
1-1/2X200 CHEM XTRM FEP200SDCR	46980099	1-1/2x200 CHEM MASTER XTREME FEP 200SD CR			1.50	38.1	2.08	38.1
1-1/2X200 CHEM+ XLPE 200SD RED	46950832	1-1/2 X 200 MUSTANG RED			1.50	38.1	2.04	38.1
1-1/2X200 CHEM+ XLPE 200SD YLW	46950780	1-1/2X200 CHEM MASTER PLUS XLPE 200SD YELLOW			1.50	38.1	2.04	38.1
1-1/2X200 MUSTANG/11/2X200MUSTANG	46950729	1-1/2X200 CHEM MASTER PLUS XLPE BLACK 200SD	200	13.8	1.50	38.1	2.04	51.8
1-1/4X100 CHEM MASTER EPDM 150SD/46960003	46960003	1-1/4X100 CHEM MASTER EPDM 150SD	150	10.3	1.25	31.8	1.79	45.5
1-1/4X100 CHEM+ XLPE 200SD GRN	46950949	1-1/4X100 CHEM MASTER PLUS XLPE 200SD GREEN			1.25	31.8	1.75	31.8
1-1/4X100 CHEM+UHMWPE200SD BLK	46970002	1-1/4X100 CHEM MASTER PLUS UHMWPE BLACK 200SD			1.25	31.8	1.72	31.8
1-1/4X200 CHEM MASTER EPDM 150SD/11/4X200COLT	46960203	1-1/4X200 CHEM MASTER EPDM 150SD	150	10.3	1.25	31.8	1.79	45.5
1X100 CHEM MASTER EPDM 150SD/46960001	46960001	1X100 CHEM MASTER EPDM 150SD	150	10.3	1.00	25.4	1.52	38.6
1X100 CHEM MASTER PLUS CPE 200SD MEGAFLEX/46960008	46960008	1X100 CHEM MASTER PLUS CPE 200SD MEGAFLEX	200	13.8	1.00	25.4	1.46	37.1
1X100 CHEM MASTER PLUS XLPE 200SD CR/46950608	46950608	1X100 CHEM MASTER PLUS XLPE 200SD CR	200	13.8	1.00	25.4	1.61	40.9
1X100 CHEM MASTER XTREME FEP 200SD/46980012	46980012	1X100 CHEM MASTER XTREME FEP 200SD	200	13.8	1.00	25.4	1.56	39.6
1X100 CHEM+ UHMWPE 200SD BLK	46970001	1X100 CHEM MASTER PLUS UHMWPE BLACK 200SD			1.00	25.4	1.47	25.4
1X100 CHEM+ XLPE 200SD BLUE	46950627	1X100 CHEM MASTER PLUS XLPE BLUE 200SD			1.00	25.4	1.50	25.4
1X100 CHEM+ XLPE 200SD RED	46950684	1X100 CHEM MASTER PLUS XLPE 200SD RED			1.00	25.4	1.50	25.4
1X100 CHEM+ XLPE 200SD YELLOW	46950051	1X100 CHEM MASTER PLUS XLPE 200SD YELLOW			1.00	25.4	1.50	25.4
1X150 CHEM XTRM FEP200SDCR BLK	46980085	1X150 CHEM MASTER XTREME FEP 200SD CR			1.00	25.4	1.58	25.4
1X20 CHEM MASTER XTREME FEP 200SD/46980022	46980022	1X20 CHEM MASTER XTREME FEP 200SD	200	13.8	1.00	25.4	1.56	39.6
1X200 CHEM MASTER XTREME FEP 200SD/46980029	46980029	1X200 CHEM MASTER XTREME FEP 200SD	200	13.8	1.00	25.4	1.56	39.6
1X200 CHEM XTREM FEP 200SD BLK	46980030	1X200 CHEM MASTER XTREME FEP 200SD BLACK			1.00	25.4	1.58	25.4
1X200 CHEM+ CPE 200SD MEGA BRN	46960027	1X200 CHEM MASTER PLUS CPE 200SD MEGAFLEX			1.00	25.4	1.46	25.4
1X50 CHEM MASTER XTREME FEP 200SD CR/46980072	46980072	1X50 CHEM MASTER XTREME FEP 200SD CR	200	13.8	1.00	25.4	1.58	40.1
2-1/2X100 CHEM MASTER EPDM 150SD/46960006	46960006	2-1/2X100 CHEM MASTER EPDM 150SD	150	10.3	2.50	63.5	3.05	77.5
2-1/2X100 CHEM+UHMWPE150SD BLK	46970005	2-1/2X100 CHEM MASTER PLUS UHMWPE BLACK 150SD			2.50	63.5	3.01	63.5
2-1/2X200 CHEM+ XLPE 150SD GRN	46950830	2-1/2X200 CHEM MASTER PLUS XLPE 150SD GREEN			2.50	63.5	3.05	63.5
2X100 CHEM MASTER EPDM 150SD/46960005	46960005	2X100 CHEM MASTER EPDM 150SD	150	10.3	2.00	50.8	2.54	64.5
2X100 CHEM MASTER PLUS CPE 200SD MEGAFLEX/46960016	46960016	2X100 CHEM MASTER PLUS CPE 200SD MEGAFLEX	200	13.8	2.00	50.8	2.48	63
2X100 CHEM MASTER PLUS XLPE 200SD CR/46950610	46950610	2X100 CHEM MASTER PLUS XLPE 200SD CR	200	13.8	2.00	50.8	2.63	66.8
2X100 CHEM MASTER XTREME FEP 200SD/46980014	46980014	2X100 CHEM MASTER XTREME FEP 200SD	200	13.8	2.00	50.8	2.55	64.8
2X100 CHEM+ UHMWPE 200SD BLACK	46970004	2X100 CHEM MASTER PLUS UHMWPE BLACK 200SD			2.00	50.8	2.50	50.8
2X100 CHEM+ XLPE 200SD BLUE	46950930	2X100 CHEM MASTER PLUS XLPE BLUE 200SD			2.00	50.8	2.54	50.8
2X100 CHEM+ XLPE 200SD GRN SMO	46950267	2X100 CHEM MASTER PLUS XLPE 200SD NONCORR			2.00	50.8	2.54	50.8
2X100 CHEM+ XLPE 200SD RED	46950490	2X100 CHEM MASTER PLUS XLPE 200SD RED			2.00	50.8	2.54	50.8
2X100 CHEM+ XLPE 200SD YELLOW	46950629	2X100 CHEM MASTER PLUS XLPE 200SD YELLOW			2.00	50.8	2.54	50.8
2X20 CHEM MASTER XTREME FEP 200SD/46980024	46980024	2X20 CHEM MASTER XTREME FEP 200SD	200	13.8	2.00	50.8	2.55	64.8
2X200 CHEM+ CPE 200SD MEGA BRN	46960028	2X200 CHEM MASTER PLUS CPE 200SD MEGAFLEX			2.00	50.8	2.48	50.8
2X200 CHEM+ XLPE 200SD BLUE	46950285	2X200 CHEM MASTER PLUS XLPE BLUE 200SD			2.00	50.8	2.54	50.8
2X50 CHEM MASTER XTREME FEP 200SD CR/46980073	46980073	2X50 CHEM MASTER XTREME FEP 200SD CR	200	13.8	2.00	50.8	2.58	65.5
3/4X100 CHEM MASTER EPDM 150SD/46960002	46960002	3/4X100 CHEM MASTER EPDM 150SD	150	10.3	0.75	19.1	1.27	32.3
3/4X100 CHEM MASTER PLUS CPE 200SD MEGAFLEX/46960007	46960007	3/4X100 CHEM MASTER PLUS CPE 200SD MEGAFLEX	200	13.8	0.75	19.1	1.20	30.5
3/4X100 CHEM+ XLPE 200SD YLW	46950686	3/4X100 CHEM MASTER PLUS XLPE 200SD YELLOW			0.75	19.1	1.25	19.1
3/4X20 CHEM MASTER XTREME FEP 200SD/46980021	46980021	3/4X20 CHEM MASTER XTREME FEP 200SD	200	13.8	0.75	19.1	1.29	32.8
3X100 CHEM MASTER PLUS CPE 150SD MEGAFLEX/46960024	46960024	3X100 CHEM MASTER PLUS CPE 150SD MEGAFLEX	150	10.3	3.00	76.2	3.48	88.4
3X100 CHEM MASTER XTREME FEP 150SD/46980016	46980016	3X100 CHEM MASTER XTREME FEP 150SD	150	10.3	3.00	76.2	3.59	91.2
3X100 CHEM+ UHMWPE 150SD BLACK	46970006	3X100 CHEM MASTER PLUS UHMWPE BLACK 150SD			3.00	76.2	3.53	76.2
3X100 CHEM+ XLPE 150SD BLUE	46950931	3X100 CHEM MASTER PLUS XLPE BLUE 150SD			3.00	76.2	3.58	76.2
3X100 CHEM+ XLPE 150SD GRAY	46950633	3X100 CHEM MASTER PLUS XLPE 150SD GRAY			3.00	76.2	3.58	76.2
3X100 CHEM+ XLPE 150SD GRN SMO	46950268	3X100 CHEM MASTER PLUS XLPE 150SD NONCORR			3.00	76.2	3.58	76.2
3X100 CHEM+ XLPE 150SD RED	46950707	3X100 CHEM MASTER PLUS XLPE 150SD RED			3.00	76.2	3.58	76.2
3X100 CHEM+ XLPE 150SD YELLOW	46950052	3X100 CHEM MASTER PLUS XLPE 150SD YELLOW			3.00	76.2	3.58	76.2
3X200 CHEM MASTER EPDM 150SD/46960013	46960013	3X200 CHEM MASTER EPDM 150SD	150	10.3	3.00	76.2	3.60	91.4
3X200 CHEM+ XLPE 150SD BLUE	46950288	3X200 CHEM MASTER PLUS XLPE BLUE 150SD			3.00	76.2	3.58	76.2
4X100 CHEM MASTER EPDM 125SD/46960012	46960012	4X100 CHEM MASTER EPDM 125SD	125	8.6	4.00	101.6	4.60	116.8
4X100 CHEM MASTER PLUS CPE 150SD MEGAFLEX/46960025	46960025	4X100 CHEM MASTER PLUS CPE 150SD MEGAFLEX	150	10.3	4.00	101.6	4.49	114
4X100 CHEM+ UHMWPE 150SD BLACK	46970007	4X100 CHEM MASTER PLUS UHMWPE BLACK 150SD			4.00	101.6	4.53	101.6
4X100 CHEM+ XLPE 150SD GREEN	46950970	4X100 CHEM MASTER PLUS XLPE 150SD GREEN			4.00	101.6	4.69	101.6
4X20 CHEM MASTER XTREME FEP 125SD/46980027	46980027	4X20 CHEM MASTER XTREME FEP 125SD	125	8.6	4.00	101.6	4.66	118.4
6X100 CHEM MASTER EPDM 125SD/46960017	46960017	6X100 CHEM MASTER EPDM 125SD	125	8.6	6.00	152.4	6.78	172.2
	46950002	3/4X100 CHEM MASTER PLUS XLPE BLACK 200SD	200	13.8	0.75	19.1	1.25	31.8
	46950005	1-1/2X100 CHEM MASTER PLUS XLPE BLACK 200SD	200	13.8	1.50	38.1	2.04	51.8
	46950006	2-1/2X100 CHEM MASTER PLUS XLPE 150SD BLACK	150	10.3	2.50	63.5	3.05	77.5
	46950001	2X100 CHEM MASTER PLUS XLPE BLACK 200SD	200	13.8	2.00	50.8	2.54	64.5
	46950003	1X100 CHEM MASTER PLUS XLPE BLACK 200SD	200	13.8	1.00	25.4	1.50	38.1
	46950004	1-1/4X100 CHEM MASTER PLUS XLPE BLACK 200SD	200	13.8	1.25	31.8	1.75	44.5
	46950007	3X100 CHEM MASTER PLUS XLPE 150SD BLACK	150	10.3	3.00	76.2	3.58	90.9
	46950008	4X100 CHEM MASTER PLUS XLPE 150SD BLACK	150	10.3	4.00	101.6	4.69	119.1
